Hypoid gearbox - High transmission ratios in just one stage

TANDER description: ServoFoxx^® hypoid gearbox

ServoFoxx^® hypoid gearboxes are designed specifically for dynamic servo motors. They are able to realize high transmission ratios in just one stage with high precision and low backlash. They are made in our production in Bremen, Germany.

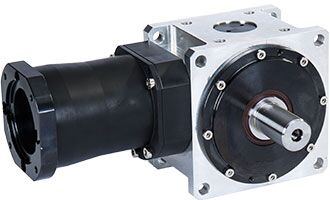

Hypoid gearbox standard version

This hypoid gearbox is supplied with a plain output shaft as standard.

Hypoid gearbox with hollow shaft

The output side is configured as a hardened and ground hollow shaft with keyway.

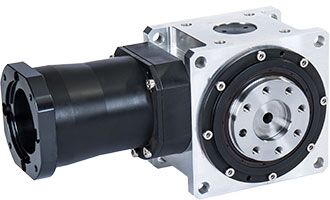

Hypoid gearbox with robot flange

With this design, tools for industrial robot applications in accordance with EN ISO 9409-1 can be mounted on to the robot flange.

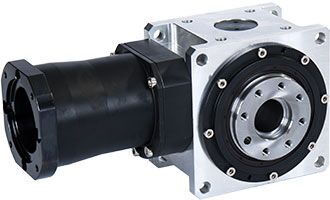

Hypoid gearbox with robot flange and with hollow shaft

The hollow shaft enable supply lines, cables or hoses to pass through the gearbox.

Our new hypoid gearboxes are low maintenance, lubricated for life, have a corrosion resistant surface finish and a backlash free torsionally stiff coupling at the input.

Ratios are from 5:1 to 15:1, depending on gearbox size. All the ratios of each gearbox size have the same dimensions.

Interchangeable flange plates and couplings at the input cater for current ranges of servo motors.
